Liquid Cargo System Simulator — Technical Reference

Physics-based simulator for liquid cargo operations on oil and chemical tankers. Models inert gas atmosphere, cargo heating, crude oil washing, vapour generation, piping hydraulics, methanol dual-fuel operations, and intact stability & hull-girder strength in a unified real-time environment.

The pilot installation is configured document-true to a Reference MR Tanker — a ~50,000 DWT IMO II chemical/product carrier with methanol dual-fuel (LGIM) propulsion: twenty cargo tanks including a dedicated methanol storage pair served by deepwell pumps, a combustion-type inert gas generator, segregated ballast with treatment plant (filter + UV), and a daily methanol service tank feeding the main engine. Tank calibration tables, hydrostatics, cross-curves and the piping topology are all extracted from the vessel's class documentation; the ship herself stays anonymous here.

Designed as a digital twin for cargo operations training — the architecture prioritises ingestion of real operational documents (loadicator condition exports, sounding logs, gas readings) to anchor the physical engines against actual vessel behaviour.

Architecture

┌─────────────────────────────────────────────────────────┐
│                    React + TypeScript                    │
│  P&ID Renderer (SVG) │ Stability │ Calibration │ Tanks  │
├─────────────────────────────────────────────────────────┤
│              WebSocket (real-time frames)                │
├─────────────────────────────────────────────────────────┤
│                  FastAPI + Python 3.12                   │
│  Simulation Engine │ Flow Solver │ Calibration Solver    │
├─────────────────────────────────────────────────────────┤
│           Vessel Definition Spec (VDS / JSON)           │
├──────────────┬──────────────┬───────────────────────────┤
│  PostgreSQL  │    Redis     │  Calibration Store (JSON)  │
└──────────────┴──────────────┴───────────────────────────┘

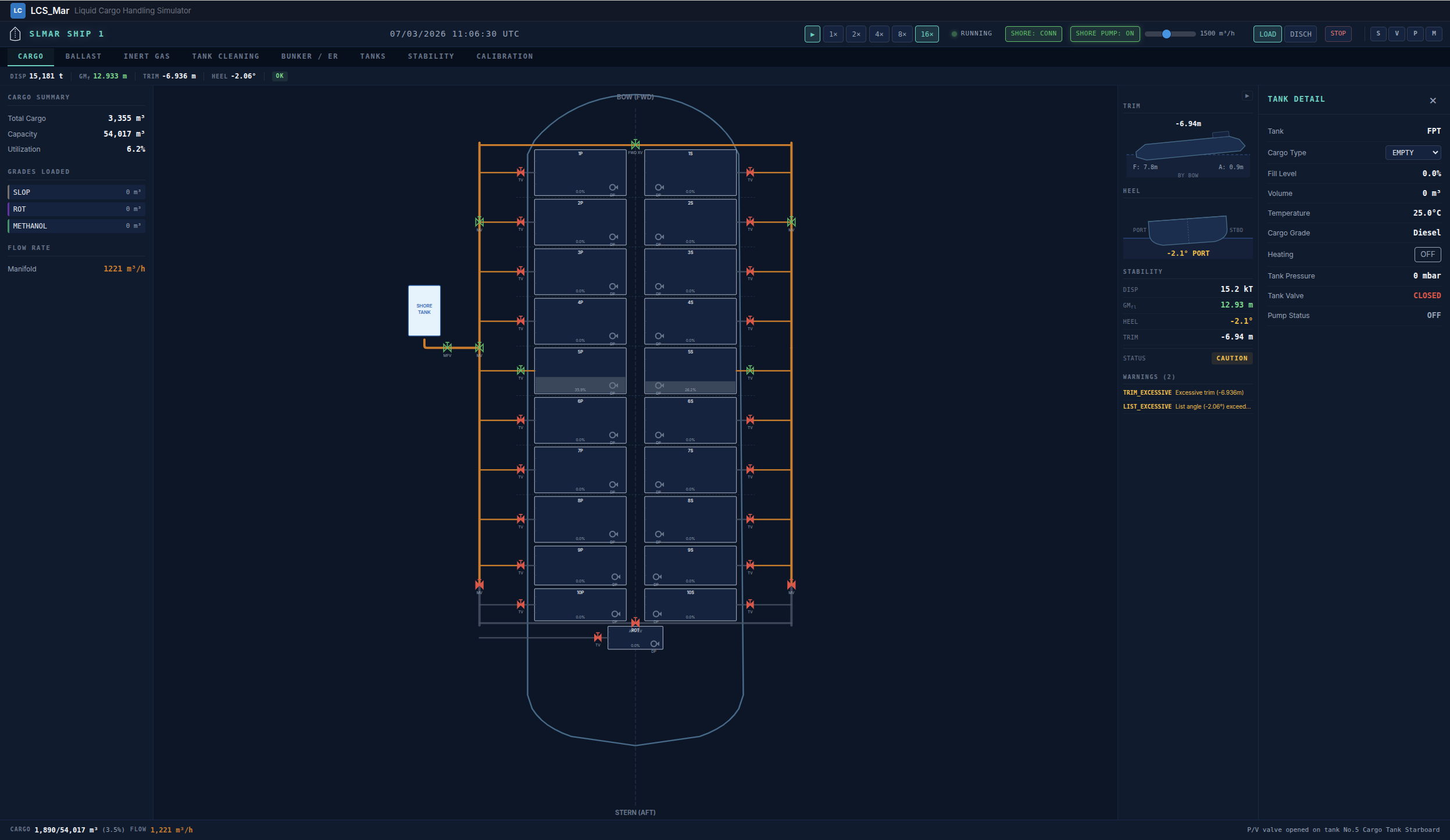

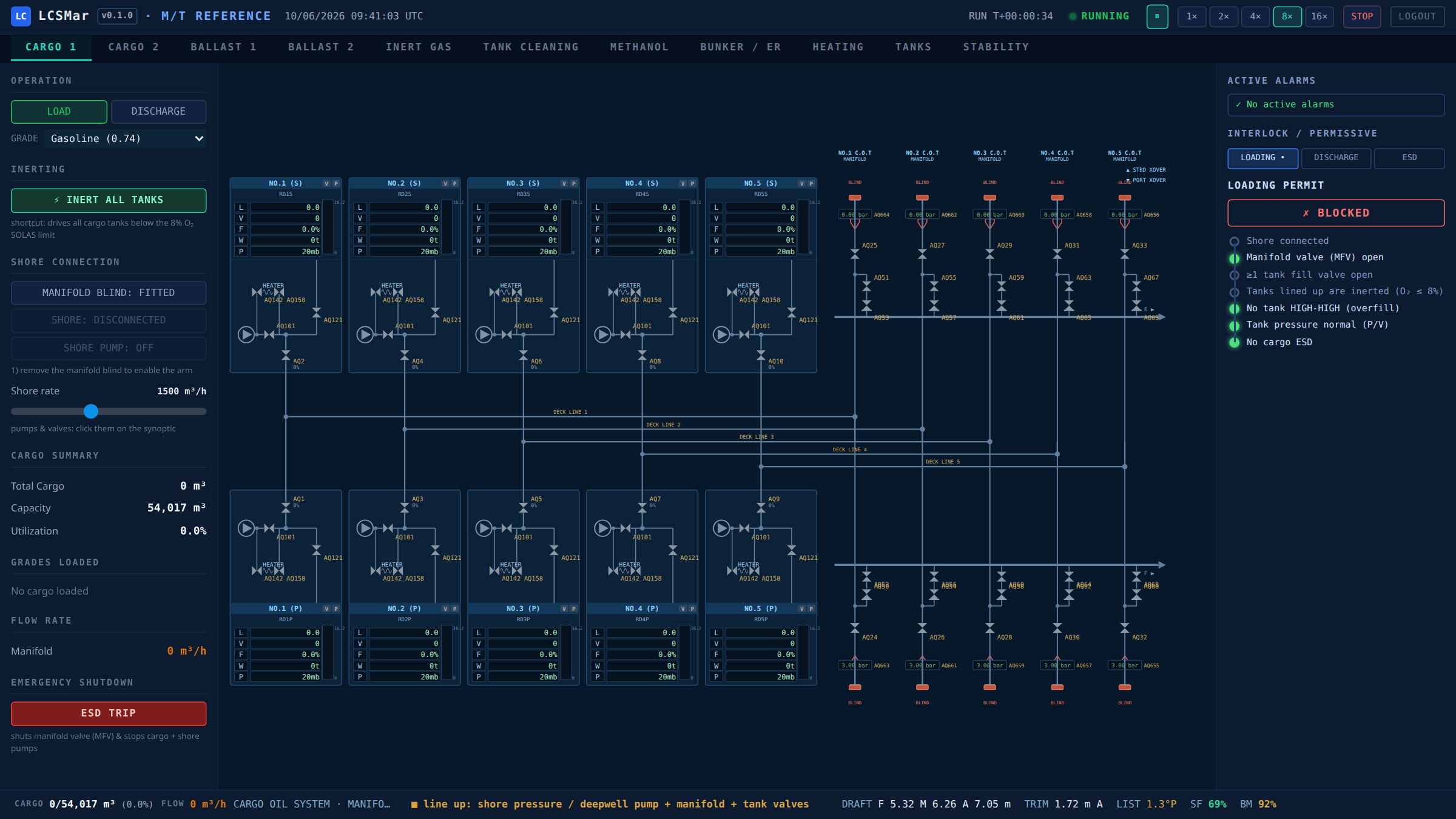

Frontend — React 19, TypeScript, Zustand. SVG-based P&ID renderer driven by vessel definition geometry. Views: Cargo (P1/P2), Ballast (tanks/pump room), Inert Gas, Tank Cleaning, Methanol, Bunker/ER, Heating, Tanks, Stability.

Backend — FastAPI, Python 3.12. Eight physics subsystems run at fixed 0.5 s timesteps, accelerable to 16×. Newton-Raphson flow solver, lumped-parameter thermal model, exponential gas dilution. WebSocket pushes delta-compressed frames to the frontend.

Vessel Definition Spec — JSON schema defining hull geometry, tank calibration tables (ullage → volume → VCG → I_T), piping networks, hydrostatic tables, cross-curve data, P&ID layout coordinates, and alarm thresholds. Vessel-agnostic: any tanker can be modelled by providing a VDS file.

Calibration Loop — Operators log observations (measured vs. predicted) via the UI or Excel upload. A statistical solver computes parameter adjustment suggestions from residual analysis, which the operator reviews and applies.

Installation

# Prerequisites: Docker, Docker Compose
docker compose up -d

# Frontend: http://localhost:3002
# API:      http://localhost:8002
# DB:       localhost:5437 (PostgreSQL 16)

Development

# Backend
cd backend && python -m venv .venv && source .venv/bin/activate
pip install -r requirements.txt
uvicorn main:app --reload --port 8001

# Frontend
cd frontend && npm install && npm run dev

# Tests
cd backend && pytest                          # 750+ tests
cd frontend && npm test                       # 42 tests

Tech Stack

Layer	Technology
Frontend	React 19, TypeScript, Zustand, Recharts, Vite
Backend	Python 3.12, FastAPI, NumPy, SciPy, openpyxl
Infrastructure	PostgreSQL 16, Redis 7, Docker Compose
Testing	pytest (750+, incl. class-data validation oracles), vitest (42)

Inert Gas Atmosphere

Models O₂ and HC concentration decay in cargo tank ullage spaces during inerting, purging, and gas-freeing.

Dilution

Exponential decay assuming perfect mixing:

Pressure

Driven by IG inflow and liquid level change:

P/V Valve

Proportional relief (not binary). The valve modulates flow proportionally to pressure deviation from setpoint:

Flow Distribution

Total IG supply from running blowers splits equally among open tank isolation valves, after mast riser diversion (85% when open). Deck isolating valve gates all flow.

Piping Hydraulics

Steady-state Newton-Raphson network solver for multi-system piping (cargo, ballast, IG, tank cleaning run simultaneously with shared tank states).

Pipe Friction

Darcy-Weisbach with Churchill correlation (all Reynolds regimes):

Valve Loss

Cv method with equal-percentage characteristic:

Pump Head

Parabolic H-Q curve with affinity law speed scaling:

Convergence

Damped Newton updates (α = 100/max(dx)), regularisation near zero flow, max 50 iterations, tolerance 1×10⁻⁶ m³/h. Check valves enforced via iterative re-solve blocking reverse flow; pump discharge non-return valves make line-up direction physically meaningful — deballasting must enter through the suction crossovers, exactly as on the real system. Inventory is conserved across tank-full and run-dry events to numerical precision.

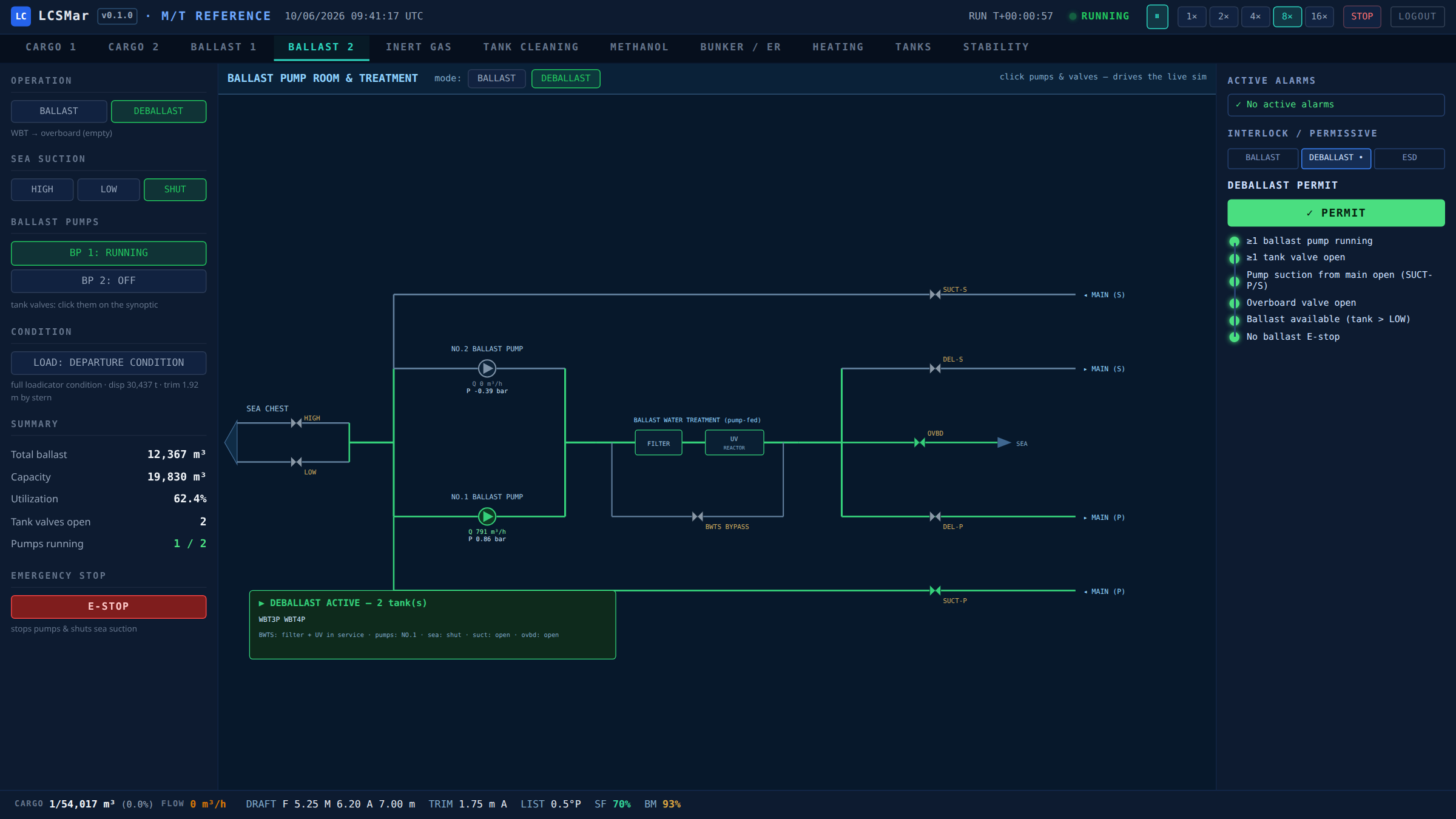

Ballast pump room during a live deballast: tank → main → suction crossover → pump → treatment train → overboard, with the permissive panel granting the line-up.

Stability & Hydrostatics

Intact stability calculation from weight/moment summation and hydrostatic table interpolation.

1. Displacement: Δ = m_lightship + Σ(V_tank × ρ_cargo)
2. Centre of gravity: KG = Σ(m_i × KG_i) / Δ, LCG and TCG likewise
3. Draft: reverse-interpolated from hydrostatic table (draft → displacement)
4. GM: GM_solid = KM_T − KG; free surface correction FSE = Σ(ρ × I_T / Δ) for slack tanks (2–98% fill); GM_fluid = GM_solid − FSE
5. Trim: trim = Δ × (LCG − LCB) / MCTC
6. List: tan(θ) = TCG / GM_fluid
7. GZ curve: GZ(θ) = KN(θ) − KG × sin(θ), interpolated from cross-curve tables

Hull-girder still-water shear force and bending moment are computed live from the same tank states, against the class allowable envelope. The buoyancy distribution is inverse-calibrated from the trim & stability booklet's own SF curves (no Bonjean data required), reproducing the booklet within a few percent across the operational envelope.

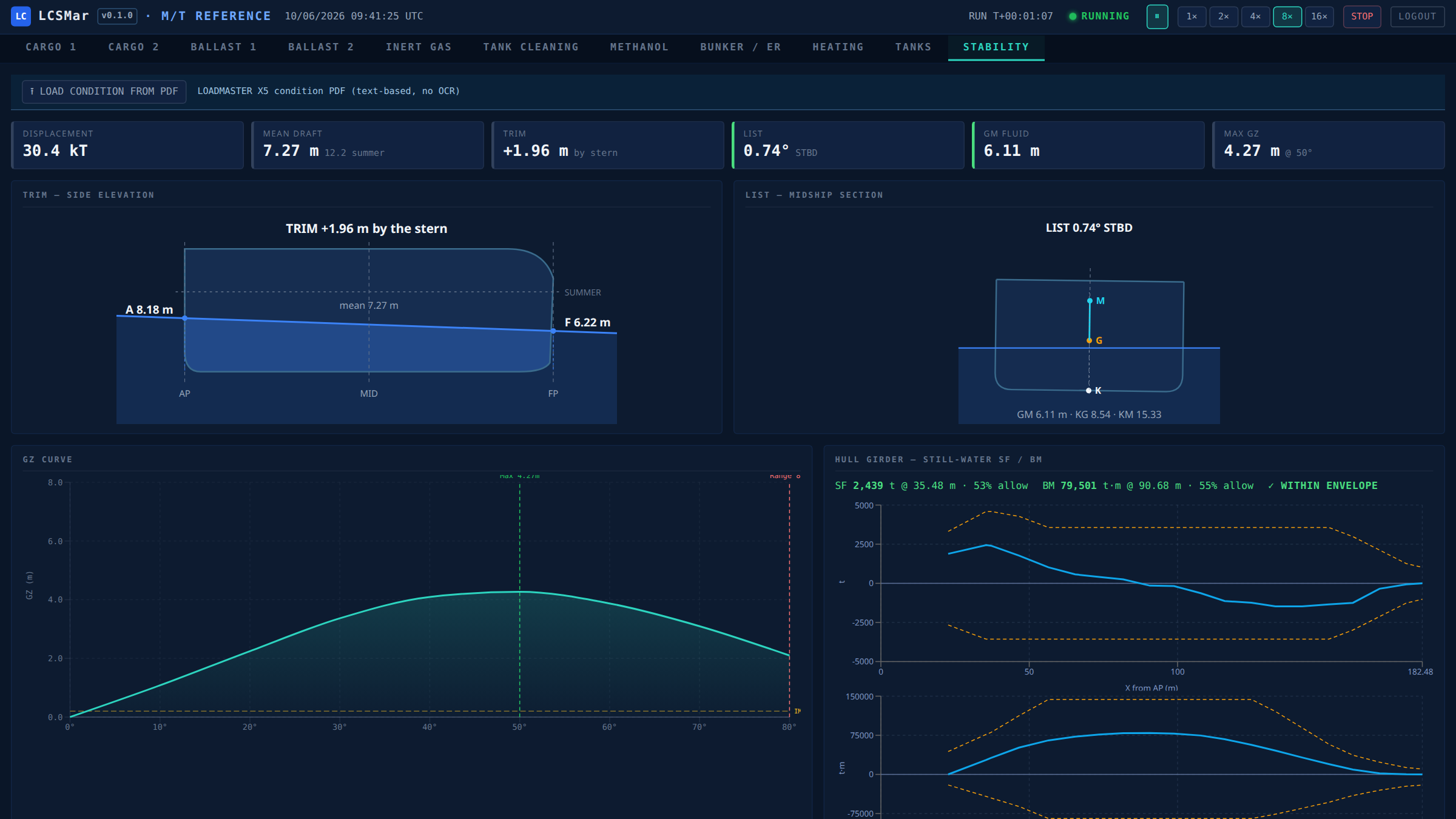

A full 77-tank departure condition loaded from a loadicator PDF export: drafts, GM, GZ curve and still-water SF/BM all within the class envelope.

Thermal Model

Lumped-parameter heat balance per tank:

Defaults: U_coil = 50 W/(m²·K), U_hull = 5 W/(m²·K), steam at 170 °C, C_p = 2000 J/(kg·K). Coil and hull areas scale with tank volume. Alarms on flash point and pour point approach.

Crude Oil Washing

Surface coverage model:

Vapour Generation

VOC generation from cargo surface, proportional to Reid Vapour Pressure:

Methanol Operations

A dedicated trainer for methanol-as-fuel operations, built from the vessel's methanol safety-system cause-and-effect documentation and bunkering procedure: bunkering (shore/barge → manifold → storage), transfer (storage → deepwell pump → daily service tank) and normal running (service tank → supply unit → master fuel valve → main engine).

• Start-permissive chains rendered as live logic bars per operation — N&sub2; mode, tank inerting ≤5% O&sub2; via the main IG line, vapour-return connection, N&sub2; line pressure tests, level-alarm tests, valve line-up in procedure order, manifold last.
• ESD cause-and-effect matrix: gas detection ≥40% LEL in any zone, fire detection (engine surround / pump room), service-tank high-high, bilge leak, manual trip — each cause and every effect (supply shutdown, ESD valve closure, master fuel valve, second-fuel changeover, N&sub2; purge) tracked live.
• Mass-conserving hydraulics: transfers run through the real network solver — storage loss equals service gain to numerical precision, verified end-to-end in the test suite.

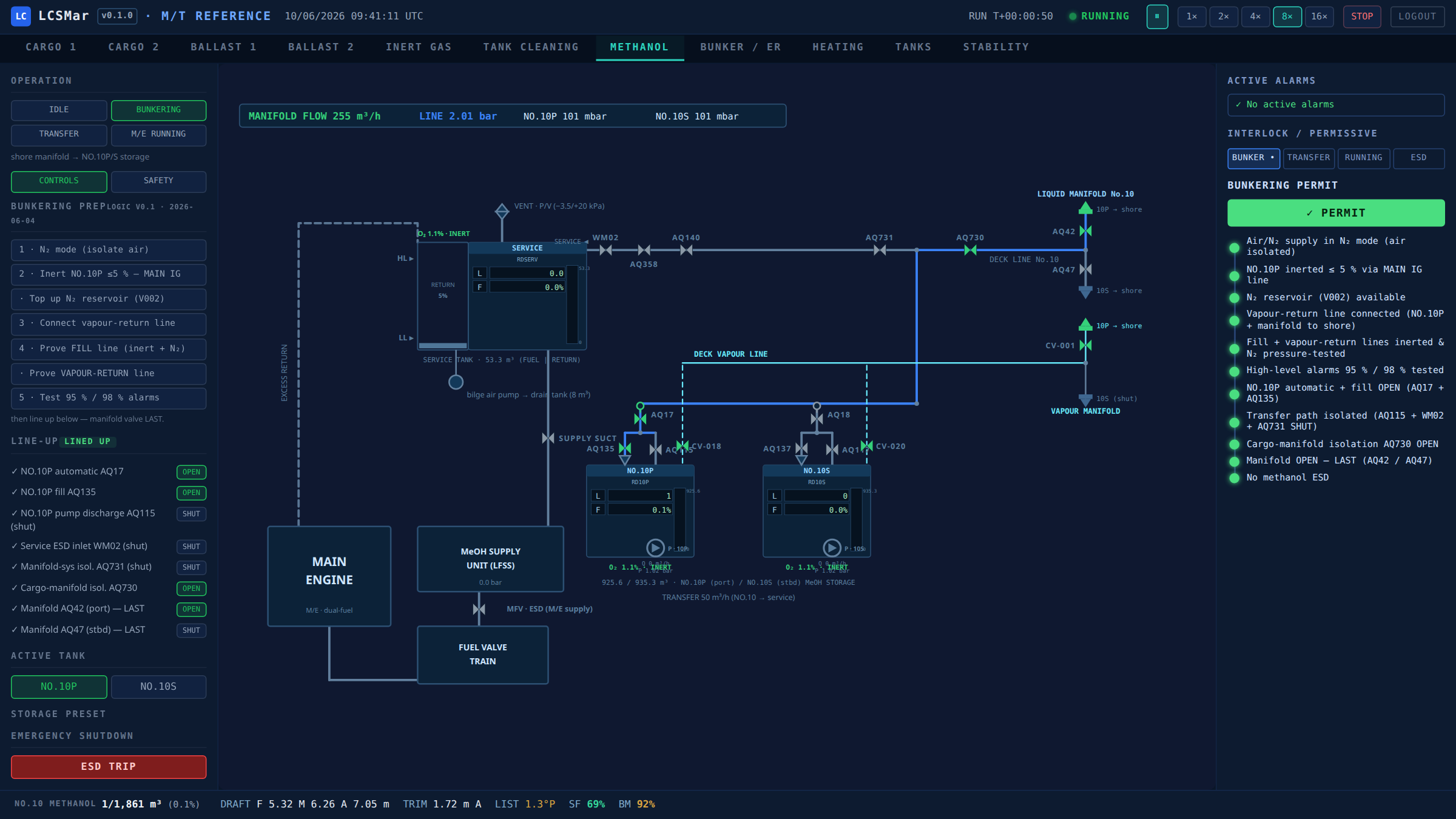

Methanol bunkering with the full permissive chain granted — manifold flow live, both storage tanks filling, vapour return to shore.

Loading Conditions

Real loadicator condition exports (text-based PDF) are parsed directly in the browser session — the PDF itself is never stored server-side. The parsed snapshot (per-tank fill, density, grade, plus the stability summary) is saved as a named condition in the simulator's library and can be re-applied to a running session in one click; stability, trim and hull-girder stress recompute live as the 70+ tanks fill.

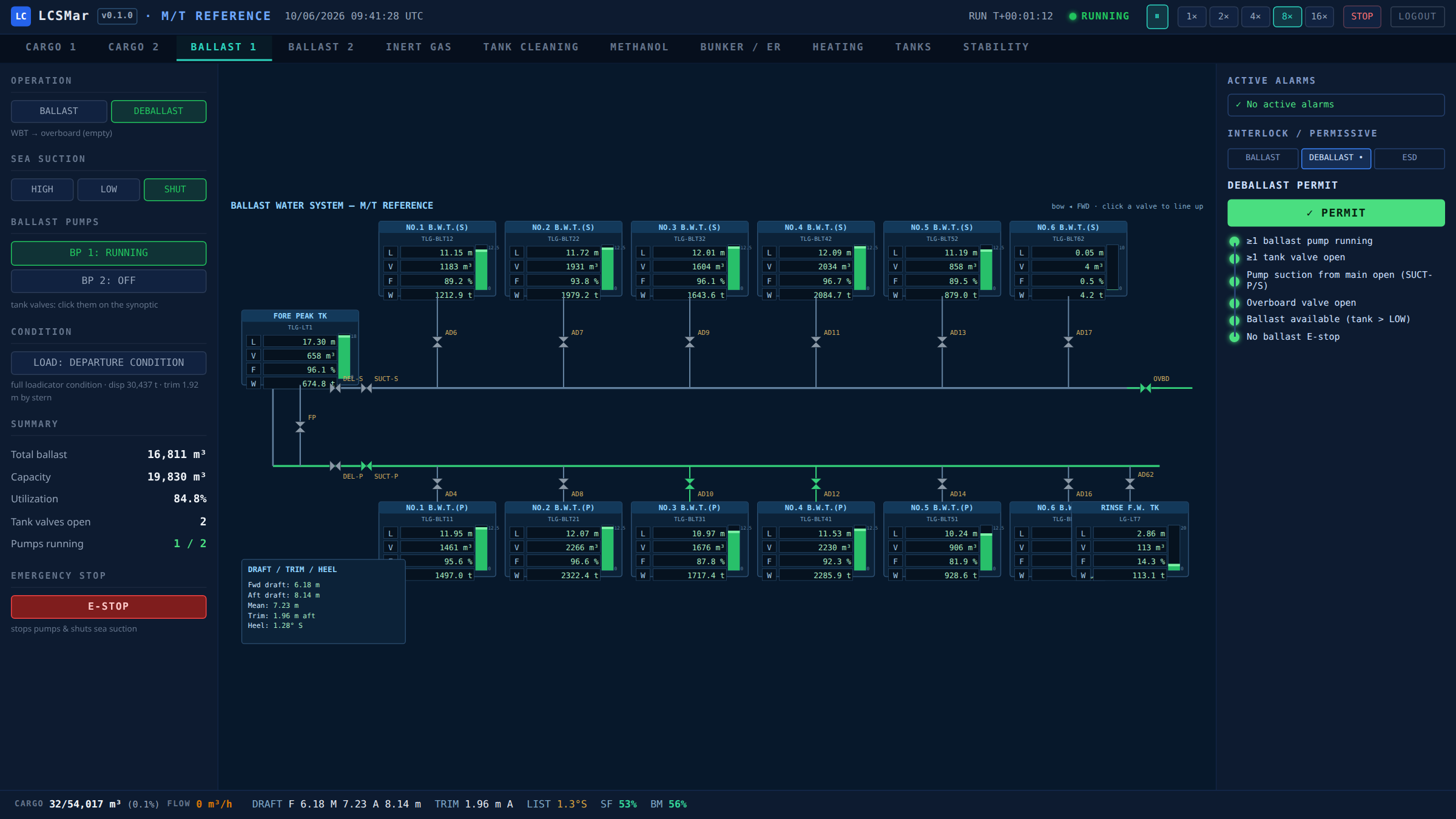

Ballast overview with per-tank level, volume and weight boxes wired to the live simulation.

Instructor Facilities

Aligned with the instructor-station requirements of DNV-ST-0033 (maritime simulator systems):

• Malfunction injection — stuck valve (ignores commands, freezes an in-flight actuator stroke), pump trip (refuses every start order until cleared), frozen level sensor (the indication freezes while the real level keeps moving underneath).
• Exercise snapshots — named save/restore of the complete simulation state, including random-generator state, so a restored exercise continues deterministically.
• Session event log — timestamped record of every operator command, alarm first-appearance, injection and snapshot, for structured debriefing.
• Deterministic replay — a session seed drives actuator travel times and initial tank atmospheres; the same scenario with the same seed replays identically for assessment.

Sessions & Access

Each account runs its own isolated simulation — engine, event log and snapshot set are private per login, resolved from the authenticated session (never from a client parameter). Ship and office staff train in parallel without interaction. A running simulation with no connected client auto-pauses after two hours and resumes exactly where it stood at the next login. Authentication is cookie-based (HMAC-signed, PBKDF2 password storage) behind a TLS gateway.

Calibration System

The calibration architecture accepts manual observations — the kind of data already recorded in tanker logbooks — and uses them to tune physics parameters.

Observation Types

IG O₂ decay rate, IG tank pressure, thermal rate, flow rate, COW duration.

Solver

Groups observations by type (minimum 3), computes mean bias and standard deviation of residuals, derives confidence metric (1 − σ/(|bias| + σ)), suggests parameter corrections via ratio or inverse-ratio adjustment. Only suggestions with >50% confidence and >1% bias are surfaced.

Workflow

Observe → Log → Suggest → Review → Apply. No automatic parameter changes — the operator always decides.

A downloadable Excel template is provided for bulk observation entry.

Physics Parameters

All 20 parameters have sensible defaults and can be overridden per vessel:

Parameter	Default	Unit	Controls
ig_supply_o2	0.03	fraction	O2 in flue gas supply
ig_hc_supply	0.001	fraction	HC in clean IG
ig_blower_rated_flow	5000	m³/h	Blower capacity at 100%
pv_valve_press	1400	mmWG	P/V valve vent setpoint
pv_valve_vac	−350	mmWG	P/V valve vacuum setpoint
pv_valve_gain	200	m³/h per mmWG	P/V proportional gain
mast_vent_fraction	0.85	fraction	Mast riser diversion ratio
u_coil	50	W/(m²·K)	Heating coil U-value
u_hull	5	W/(m²·K)	Hull heat transfer
steam_temp_c	170	°C	Steam supply temperature
cp_cargo	2000	J/(kg·K)	Cargo specific heat
coil_area_per_m3	0.1	m²/m³	Coil surface per tank volume
hull_area_per_m3	0.15	m²/m³	Wetted surface per tank volume
cow_effectiveness	0.3	—	COW washing rate factor
cow_ig_pressure_min	100	mmWG	Minimum IG for safe COW
voc_base_rate	0.001	frac/s/m²	Base VOC generation rate
surface_area_per_vol	0.05	m²/m³	Tank surface estimate
loading_factor	3.0	multiplier	VOC multiplier during loading
default_cargo_density	850	kg/m³	Fallback cargo density
default_ballast_density	1025	kg/m³	Seawater density

Vessel Definition Spec

Any tanker can be modelled by providing a VDS JSON file defining:
