MarineWatcher

Marine Intelligence Platform — Technical Reference

Real-time maritime regulatory monitoring and intelligence platform. Aggregates news and regulatory updates from 17 industry sources (10 RSS + 7 HTML scrapers), classifies articles by IMO convention, vessel type, geographic zone and urgency level, and provides on-demand AI summaries via a local LLM. Integrates AIS-based fleet tracking to monitor vessel positions in real time, and visualises piracy incidents from the IMB Live Piracy Map on an interactive map with proximity alerts.

Architecture

┌─────────────────────────────────────────────────────────┐
│              React 18 + TypeScript + Tailwind            │
│  Feed │ Timeline │ Sources │ Map │ Settings │ Detail     │
├─────────────────────────────────────────────────────────┤
│          REST API + WebSocket (AIS stream)               │
├─────────────────────────────────────────────────────────┤
│                FastAPI + SQLAlchemy 2.0                   │
│  Scheduler │ Classifier │ Enrichment │ Notifier │ AIS    │
├──────────────┬──────────────┬───────────────────────────┤
│  PostgreSQL  │    Ollama    │     AIS Stream API         │
└──────────────┴──────────────┴───────────────────────────┘

Frontend — React 18, TypeScript, Vite 6, Tailwind CSS, Zustand, TanStack React Query. Leaflet map with CARTO dark tiles, zone-based urgency clustering, and live AIS vessel markers.

Backend — FastAPI, SQLAlchemy 2.0 async, Pydantic v2. APScheduler polls sources every 30 minutes. On-demand LLM enrichment via Ollama (no batch processing — summaries generated only when requested). Telegram Bot API for push notifications.

Data — PostgreSQL with GIN indexes for full-text search and array overlap queries. Feed deduplication via SHA256 GUID generation. AIS positions stored as upsert (latest position per vessel) with 12-hour track sampling for historical playback.

Installation

# Prerequisites: Docker, Docker Compose
# PostgreSQL instance accessible on the network
# Ollama with qwen2.5:32b (optional — only needed for AI summaries)

docker compose up -d

The init container creates the database and runs migrations automatically on first start.

• Frontend: http://localhost:3006
• API: http://localhost:8006
• Health: http://localhost:8006/api/health

Configuration

Copy .env.example to .env:

MW_DATABASE_URL=postgresql+asyncpg://postgres:postgres@qm-db:5432/marinewatcher
MW_POLL_INTERVAL_MINUTES=30
MW_AIS_API_KEY=<your-aisstream-key>

Ollama is accessed via host.docker.internal:11434 from inside the container. The app works without Ollama — AI summaries simply won't be available.

Tech Stack

Layer	Technology
Frontend	React 18, TypeScript, Vite 6, Tailwind CSS
State	Zustand, TanStack React Query
Backend	FastAPI, SQLAlchemy 2.0 async, Pydantic v2
Scheduling	APScheduler (AsyncIOScheduler)
Database	PostgreSQL 16, asyncpg, GIN indexes
LLM	Ollama (qwen2.5:32b), on-demand only
Maps	Leaflet, react-leaflet, CARTO tiles
AIS	WebSocket client (aisstream.io)
Notifications	Telegram Bot API
Deployment	Docker Compose (3 containers)

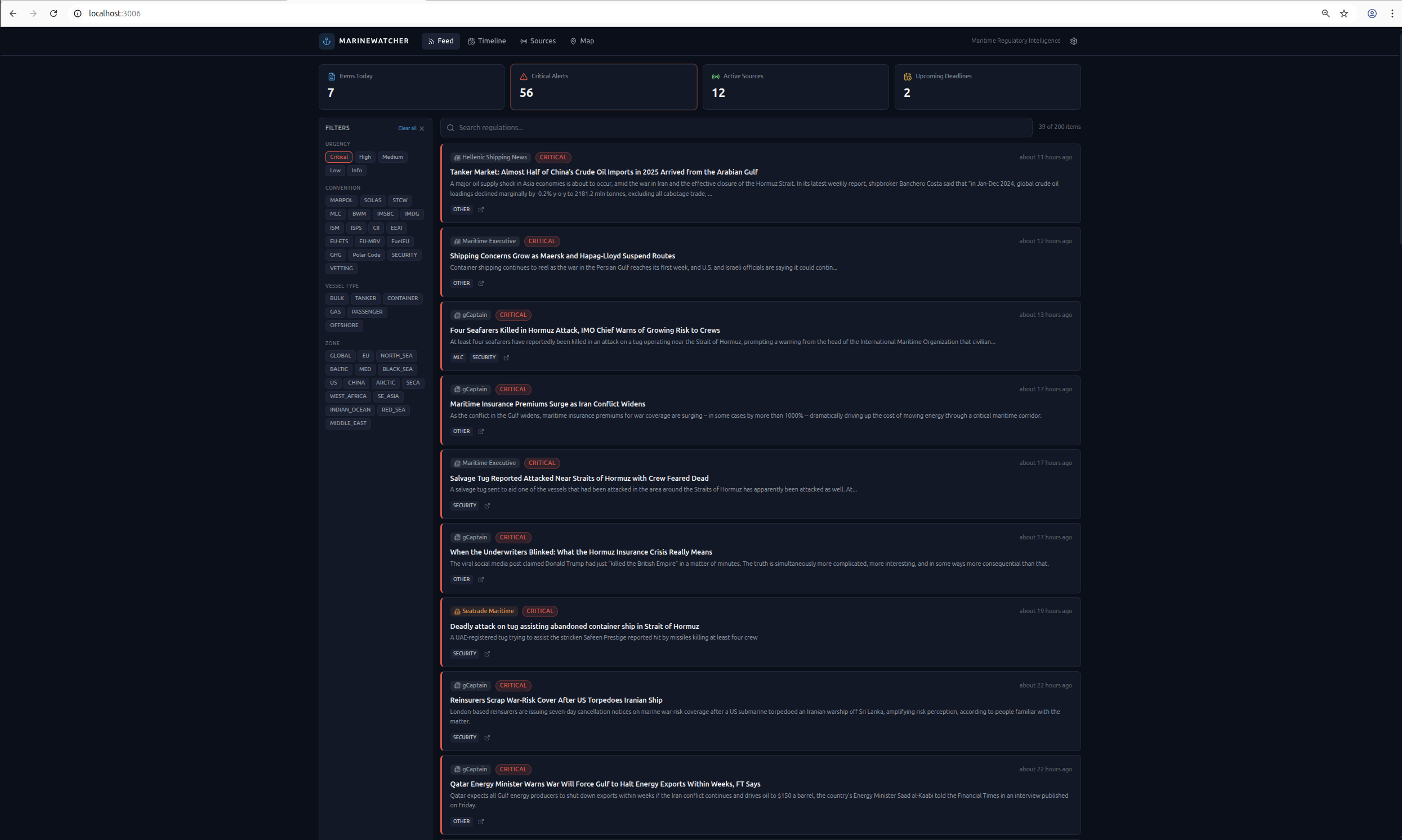

Feed Aggregation

17 RSS and HTML sources polled every 30 minutes via APScheduler. New articles are deduplicated by SHA256(source_id:entry_id) and classified automatically on ingestion.

Classification Engine

Every ingested article is classified across four dimensions using regex-based keyword matching.

Conventions (25+)

MARPOL, SOLAS, STCW, MLC, ISM, ISPS, IMSBC, IMDG, GHG, EU-ETS, EU-MRV, FuelEU, CII, EEXI, Polar Code, AFS, HNS, LL, COLREG, VETTING (SIRE, CDI, OCIMF, RightShip, TMSA, PSC).

Vessel Types

Bulk carriers, tankers (crude/product/chemical), containers, LNG/LPG, passenger/cruise, RoRo, offshore/FPSO, fishing, superyachts, tugs.

Geographic Zones (16)

EU, North Sea, Baltic, Mediterranean, Black Sea, Red Sea, Middle East, West Africa, SE Asia, Indian Ocean, Arctic, SECA, ECA, US, China, Global.

Urgency Levels

Level	Triggers
Critical	ban, detention, vessel sank, missile strike, crew killed
High	mandatory requirement, deadline, piracy attack, sanctions
Medium	guidance, advisory, bulletin
Low	study, report, conference
Info	default for unmatched articles

AI Enrichment

On-demand LLM summaries via local Ollama (qwen2.5:32b). No external API calls, no batch processing — the LLM is queried only when a user clicks “Get AI Summary” on a specific article.

The enrichment prompt extracts:

• 2–3 sentence summary
• Conventions, vessel types, zones (merged with keyword tags)
• Urgency assessment
• Effective date (regulatory entry-into-force, if mentioned)

Interactive Map

Leaflet map with CARTO dark tiles (no labels). Three layers:

Zone Clustering

Articles grouped by geographic zone, rendered as sized/coloured circles. Circle radius scales with article count, colour reflects highest urgency in the zone. Click to browse articles in that zone.

Piracy Incidents

Live piracy incident data from the IMB Live Piracy Map, displayed as red skull markers. Proximity alerts trigger Telegram notifications when a fleet vessel is within 50 NM of a reported incident.

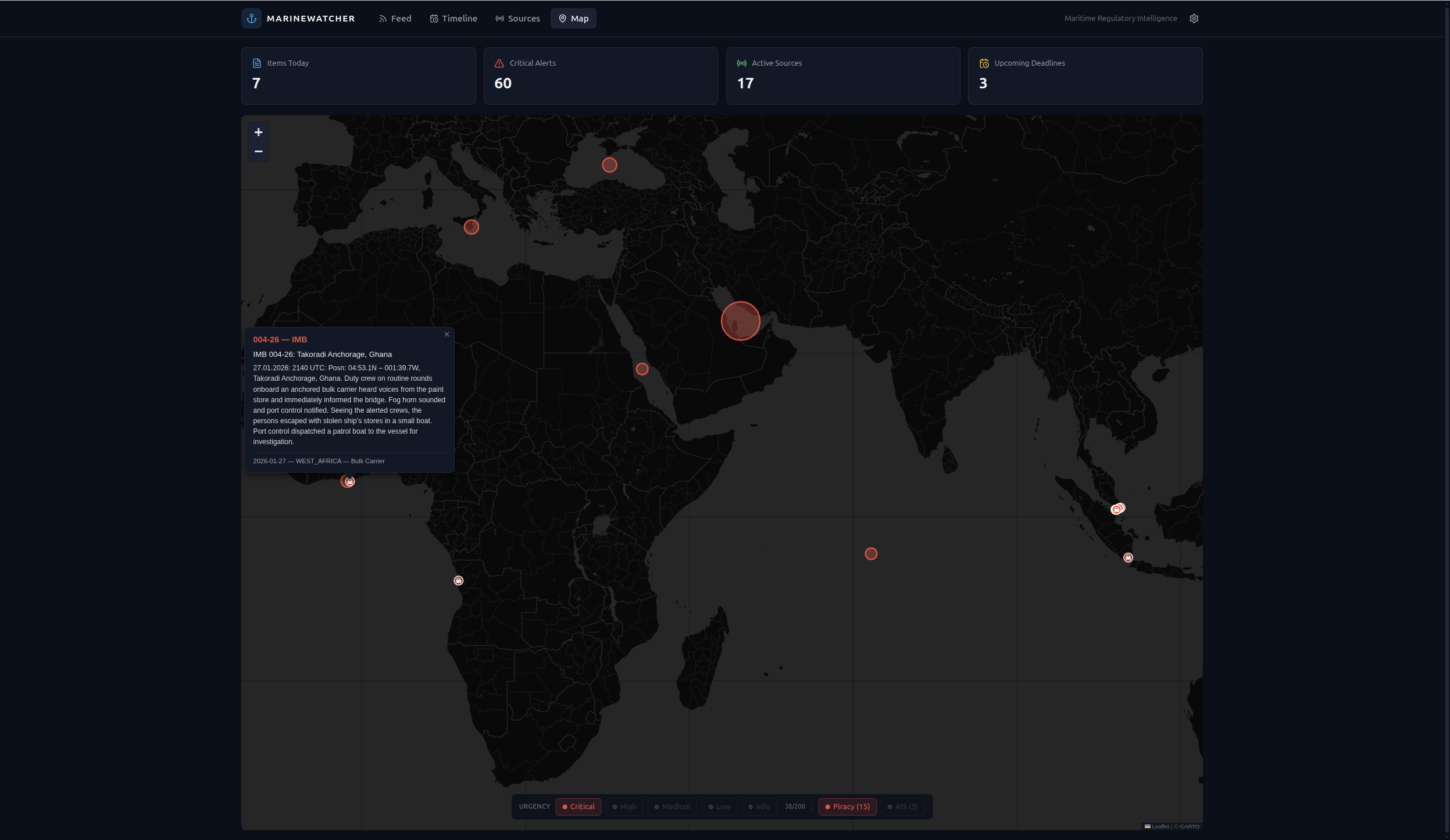

Fleet Tracking (AIS)

Live AIS vessel positions as rotatable SVG arrow markers. Dashed polyline breadcrumbs from 12-hour track history. Fleet panel shows vessel status, speed, and time since last update.

Fleet Tracking

WebSocket connection to AIS stream API for real-time position updates:

• Position reports — lat/lng/speed/course/heading upsert to a single-row-per-vessel table
• Track points — sampled every 12 hours for historical playback
• Ship static data — IMO number, name, destination merged on receipt
• Connection recovery — exponential backoff (5, 10, 30, 60 seconds)

The fleet panel displays online/offline status, current speed, and destination for each tracked vessel.

Telegram Notifications

Configurable push alerts via Telegram Bot API:

• Urgency threshold — minimum urgency level to trigger alerts (e.g., “high” sends critical + high)
• Convention filter — only alert on specific conventions (empty = all)
• Zone filter — only alert on specific zones (empty = all)
• Rate limiting — max 10 messages per poll cycle, overflow summarised
• Test button — sends a verification message to confirm bot token and chat ID

Timeline

Regulatory deadlines extracted from articles with effective dates. Grouped by month, sorted chronologically, with “UPCOMING” badges for future dates. Useful for tracking convention entry-into-force dates, vetting inspection deadlines, and compliance cutoffs.

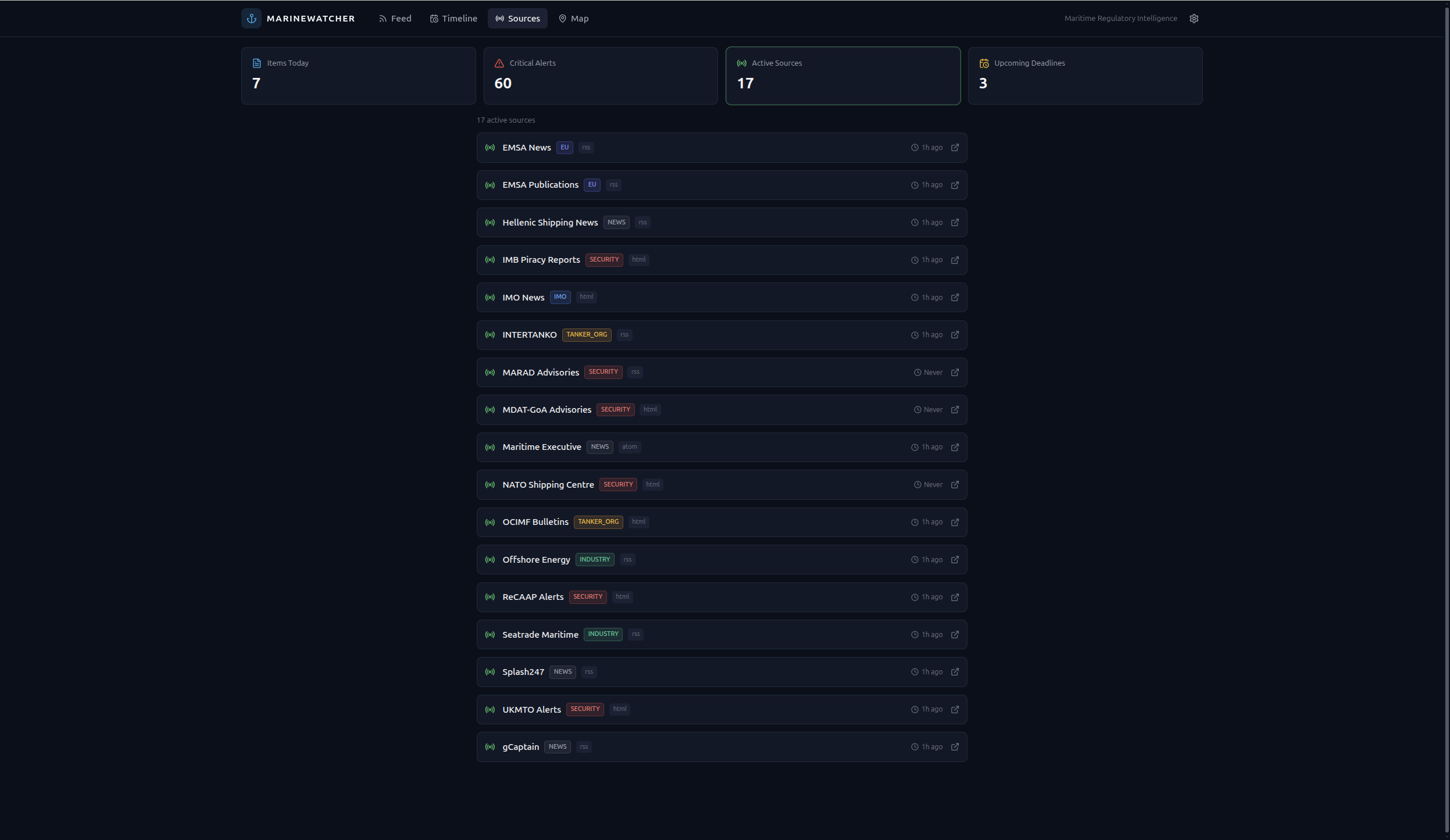

Sources

Source	Type	Category
EMSA News	RSS	EU
EMSA Publications	RSS	EU
gCaptain	RSS	News
Maritime Executive	RSS	News
Seatrade Maritime	RSS	News
Hellenic Shipping News	RSS	News
Splash247	RSS	News
Offshore Energy	RSS	News
INTERTANKO	RSS	Tanker Org
IMO Press Briefings	HTML	IMO
OCIMF Bulletins	HTML	Tanker Org
ReCAAP Alerts	HTML	Security
MARAD Advisories	HTML	Security
UKMTO Warnings	HTML	Security
NATO Shipping Centre	HTML	Security
MDAT-GoA	HTML	Security
IMB Piracy Map	API	Security

API Reference

Database Schema

Six tables with GIN indexes for performant filtering:

Table	Purpose	Key Columns
sources	Feed definitions	name, url, feed_type (rss/atom/html), last_polled_at
feed_items	Articles	title, summary, conventions[], vessel_types[], zones[], urgency, llm_summary, effective_date
notification_settings	Telegram config	bot_token, chat_id, min_urgency, conventions[], zones[]
vessel_positions	Current AIS position	mmsi (PK), lat, lng, speed, course, heading, destination
vessel_tracks	Historical breadcrumbs	mmsi, lat, lng, speed, course, recorded_at
piracy_incidents	IMB piracy reports	imb_id (PK), lat, lng, incident_type, vessel_name, description, date

Dev Log

v0.0.1 — 7 March 2026

Public announcement. Baseline version.

Feed aggregation from 17 sources (10 RSS + 7 HTML scrapers), regex-based classification engine, on-demand AI enrichment via Ollama, interactive Leaflet map with zone clustering and piracy incident markers, AIS fleet tracking with proximity alerts, Telegram notification layer, regulatory timeline view. Full REST API with paginated filtering.
